Heavy-duty, high-speed, professional, automatic, floor standing, auto-punch machine. For a range of book and calendar punching production.
- Punching dies for all types of ring wire, plastic comb, coil, calendars and bespoke dies are available.
- Two finger paper pick up system which can handle a range of mixed stock
- Optional Air blower to help feed difficult stocks
- Fast die changes
- Optional 2-part split dies for book and calendar work
- options for feed and output allow you to configure the machine to match your production environment
- Different feed and delivery options available
- Wheels allow the machine to be moved
- QSA (Quick Size Adjustment) for high flexibility of different paper formats(1)

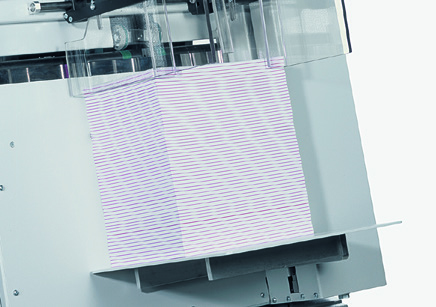

- Horizontal paper feeding for easy product loading
- quality “Made in Germany”
Price: POA
CALL US FOR BEST PRICE 1300 859 471
Digital touch screen display for setup and up to 40 job memories.
(Digital Version)
Automatic adjustment for paper formats.
(Digital Version)
Manual version control panel for setup
Manual dial adjustments for paper formats.
(Manual version)
Professional dies can be made with standard or bespoke punch patterns.
Special tear-off perforation dies and adjustable back stop are also available.
The machine comes equipped with eccentric shafts. This feature allows the dies to be re-sharpened a few times.
Split two-part dies with thumb cut allow book block punching as well as calendar punching without the need to invest in a second die.
QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without having to remove the die.(1)
Two finger paper pick-up system allows mixed paper stocks to be handled more easily.
Optional : Air blow system gives increased efficiency on difficult paper stocks.
Turnover drum keeps the punched sheets in the correct page sequence and delivers them to the ejection system. Handling paperweights from 60 up to 800 gram.
Built with heavy duty components and the latest stepped motor technology to ensure a long lifespan.
Optional extra: Speed increase with 120 cycles per/min. possible
Paper feeding options: Paternoster for continuous running.
Paper feeding options: Deep Pile
Paper delivery options: Jogger
Paper Delivery options: Deep pile
- Specifications
- Documentation
- Video
- Contact us
| Mechanical cycles per hour | 6,000 / optional up to 7,200 |
| Min. punching width | 100 mm |
| Max. punching width | 360 mm |
| Min. unpunched length | 85 mm |
| Max. unpunched length | 360 mm |
| Max. punching thickness | 2.4 mm (1) |
| Punching operation | Automatic |
| Punch dies available | 3:1, 2:1 ring wire, calendar, coil, plastic comb, tear-off |
| Die type | Professional |
| Selectable punch pins (QSA) | Optional |
| Bespoke dies | Yes |
| Variable margin depth | Optional |
| Die changeover time | 3 min |
| Machine dimensions L x W x H | 2,000 x 1,200 x 1,600 mm |
| Machine weight | 680 kg (2) |
| Machine packing dimensions L x W x H | 2,240 x 1,300 x 1,780 mm |
| Machine weight with packing | 960 kg (2) |
| Power requirement | 230V~50Hz / 2,3kW |
